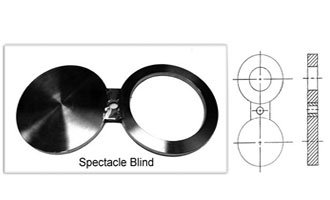

Spectacle blinds consist of a connected ring (spacer) and a plate (spade). If a piece of equipment needs to be inspected or removed from service then the plate covers the ring to form an airtight seal which consequently isolates a section of line or the piece of equipment. It provides a permanent or long term isolation device.
Our spectacle blinds are designed to ensure that an item of equipment can be securely blanked off, with no possibility of leakage in the valve.
Spades and spacers are similar to spectacle blinds, except that they are not attached to one another. They are designed to isolate sections of pipe to prevent contamination and allow inspection.
Because safety is so important to the function, we assure that they are tested rigorously to client’s specifications.
Our spectacle blinds, spades and spacers come in pressure ratings of 150lbs, 300lbs, 600lbs, 900lbs, 1500lbs and 2500lbs
JMS products have been fully tested to international standards to ensure we only supply the highest quality products.
Call your nearest JMS office today for more information on our range of products.
Size Range | Type | Dimentional Standard | Thickness & Pressure Ratings | Carbon Steels | High Yield | Alloy Steels | Austenitic Stainless Steels | Duplex Steels | Nickel Alloys | Copper Nickel |
---|---|---|---|---|---|---|---|---|---|---|
¼ to 72 NB” | Raised Face RTJ Flat Face | ASME B16.5 ASME B16.36 ASME B16.47 Series A & B API 6A (API Flanges)Norsok L005 (Compact Flanges ) | All Standard Schedules Intermediate & Heavy Wall Also Available Pressure Ratings from 150# to 2500# /2,000 to 20,000 PSI | ASTM A105N | ASTM A694 F42 | ASTM A182 Grade F1 | ASTM A182 F304 / L | ASTM A182 F51 | ASTM B564 UNS NO6625 | Cu/Ni 90/10 |
ASTM A350 LF2 | ASTM A694 F52 | ASTM A182 Grade F5 | ASTM A182 F316 / L | ASTM A182 F53 | ASTM B564 UNS NO8825 | |||||
ASTM A350 LF3 | ASTM A694 F60 | ASTM A182 Grade F9 | ASTM A182 F321 / H | ASTM A182 F55 | ASTM B564 UNS NO8800 | |||||
ASTM A694 F65 | ASTM A182 Grade F11 | ASTM A182 F347 / H | ASTM B564 UNS NO8810/11 (HT) | |||||||
ASTM A694 F70 | ASTM A182 Grade F22 | ASTM A182 F44 UNS S31254 (6 Mo) | ||||||||
A707 L3 CL3, L5 CL3 | ASTM A182 Grade F91 |
